$2,039.48
FMUSER
D0101H74YLX
Add to Cart
Highlights:
1.8 data ports, with the first data port supporting IP out over HTTP, UDP (SPTS), HLS, and RTMP.
2.Data CH1-7 ports support IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP, and HLS, with IP out over HTTP, HLS, and RTMP (Unicast)
3.Supports adding scrolling caption, welcome words, boot image, and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed FMUSER Hotel IPTV APK). The device also supports downloading FMUSER Hotel IPTV APK directly from this device.
4.Support about 80 HD/SD programs (Bitrate: 2Mbps) when HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), but the actual application shall prevail, and suggest maximum 80% CPU utilization
5.Supports program playing with APK downloaded android STB and TV, with a maximum of 300 terminals.

Details:
FMUSER DTV-5720-8 7 IP(UDP/RTP/SPTS/RTSP) in 1 IP(HTTP/UDP/HLS/RTMP) out IPTV Gateway ServerOverview:

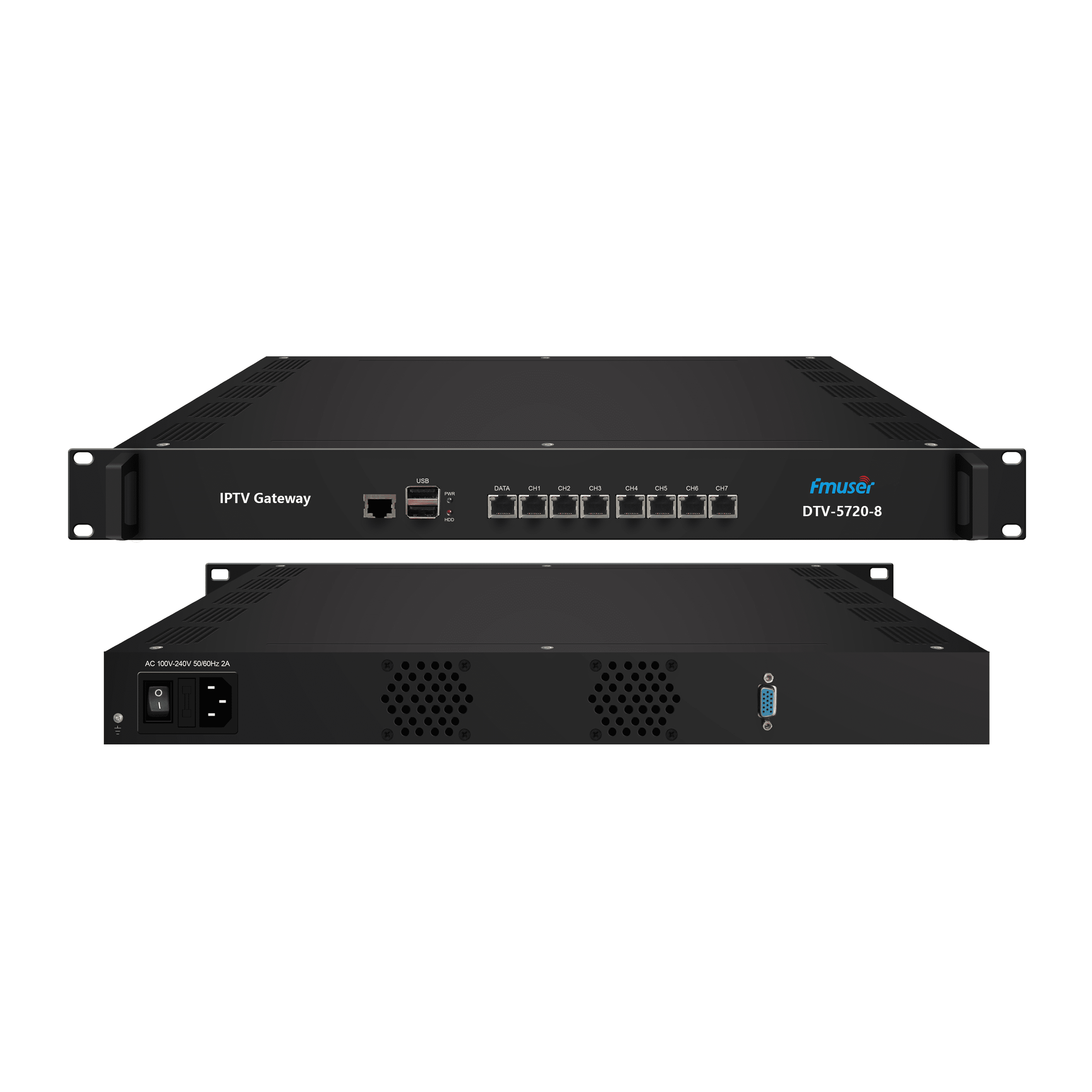

FMUSER DTV-5720-8 IPTV Gateway is a versatile device used for protocol conversion and streaming media distribution scenarios. It is capable of converting broadcast network IP streams over HTTP; UDP; RTP; RTSP; and HLS and TS files into HTTP; UDP; HLS; and RTMP protocols. This system can achieve integration by receiving a variety of commercial streaming media services and can also provide streaming media services directly.

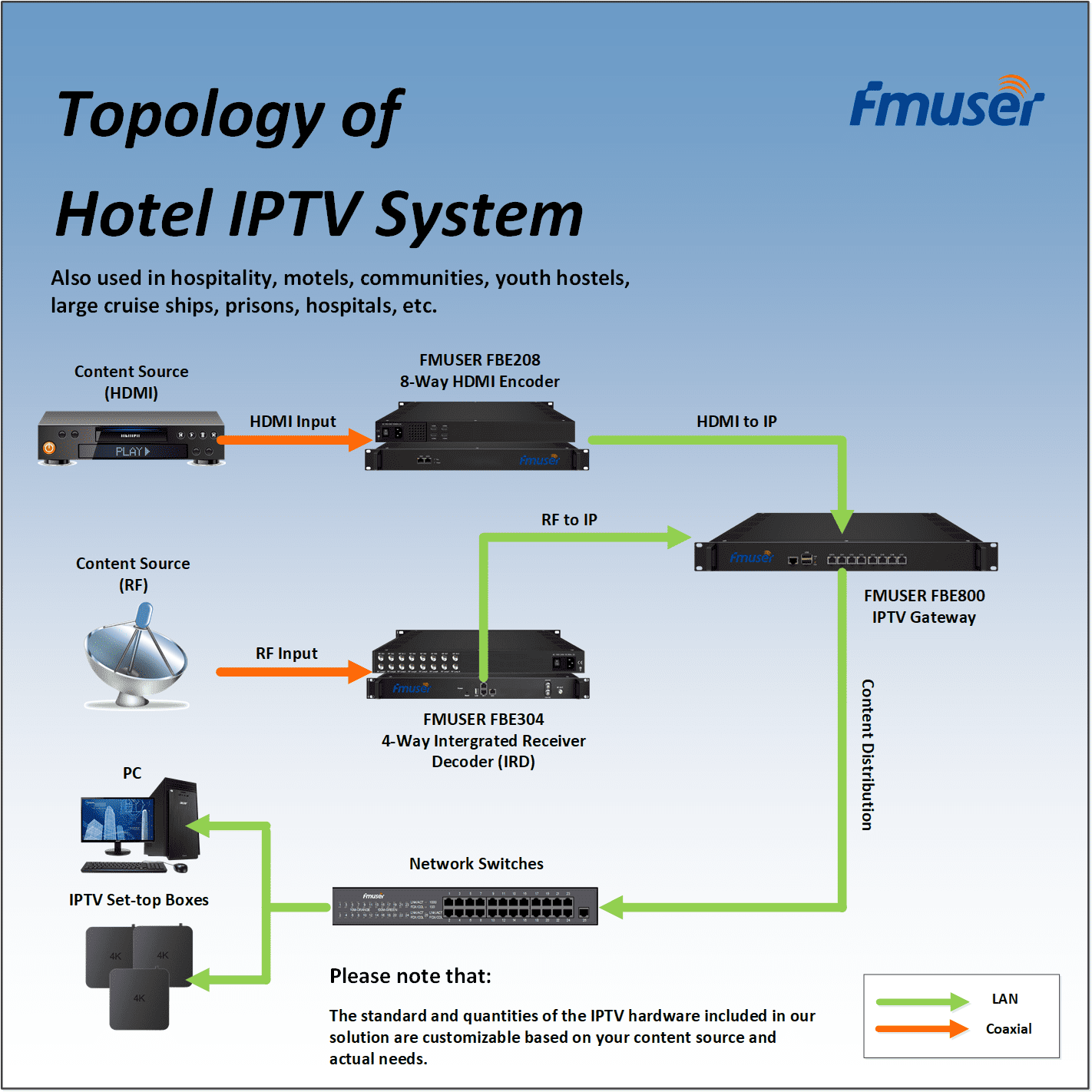

FMUSER DTV-5720-8 IPTV Gateway is a flexible and easy-to-use device that can be used in various applications. It supports a wide range of protocols and file formats; making it easy to integrate into existing systems. The system can be used to distribute streaming media content over a local network; the internet; or both; allowing users to access the content from anywhere. The system also supports multiple languages and can be used in a variety of settings; including hotels; hospitals; schools; and corporate environments.
Features:

FMUSER DTV-5720-8 has 8 data ports; with the first data port supporting IP out over HTTP; UDP (SPTS); HLS; and RTMP.

The Data CH1-7 ports support IP in over HTTP; UDP (SPTS); RTP (SPTS); RTSP; and HLS; with IP out over HTTP; HLS; and RTMP (Unicast).Supports TS files uploading through web management and IP anti-jitter function.

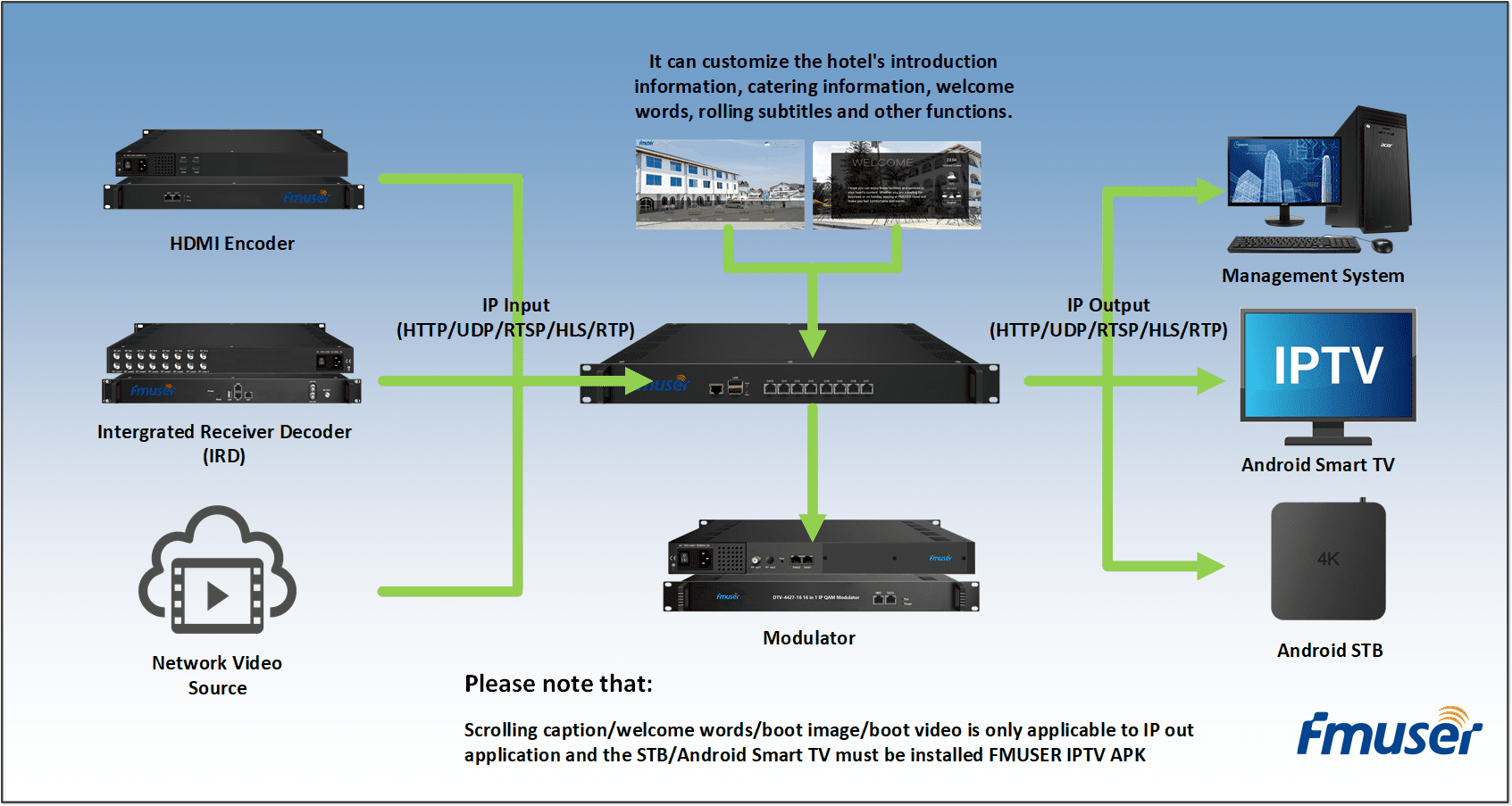

Supports adding scrolling caption; welcome words; boot image; and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed FMUSER HotelIPTV APK).

The device also supports downloading FMUSER HotelIPTV APK directly from this device.Support about 80 HD/SD programs (Bitrate: 2Mbps) when HTTP/RTP/RTSP/HLS is converted into UDP (Multicast); but the actual application shall prevail; and suggest maximum 80%CPU utilization.

Supports program playing with APK downloaded android STB and TV; with a maximum of 300terminals.

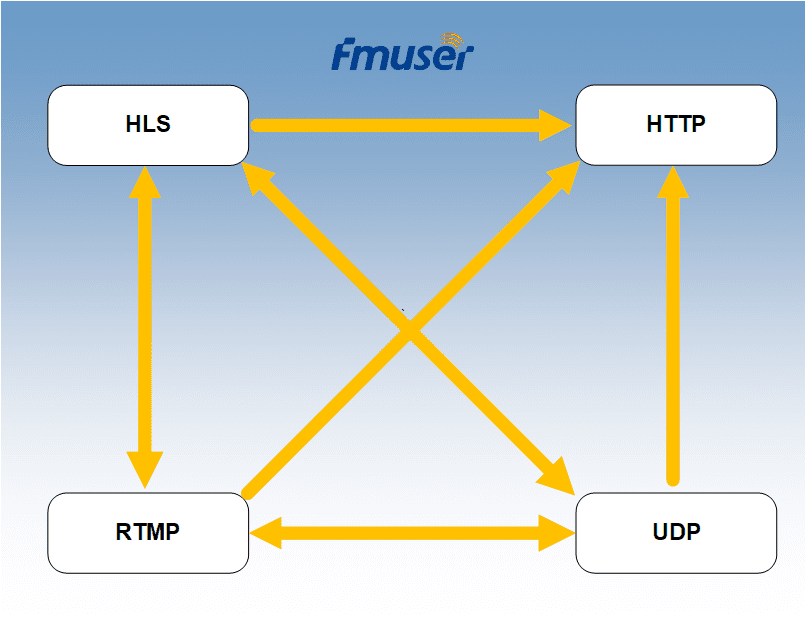

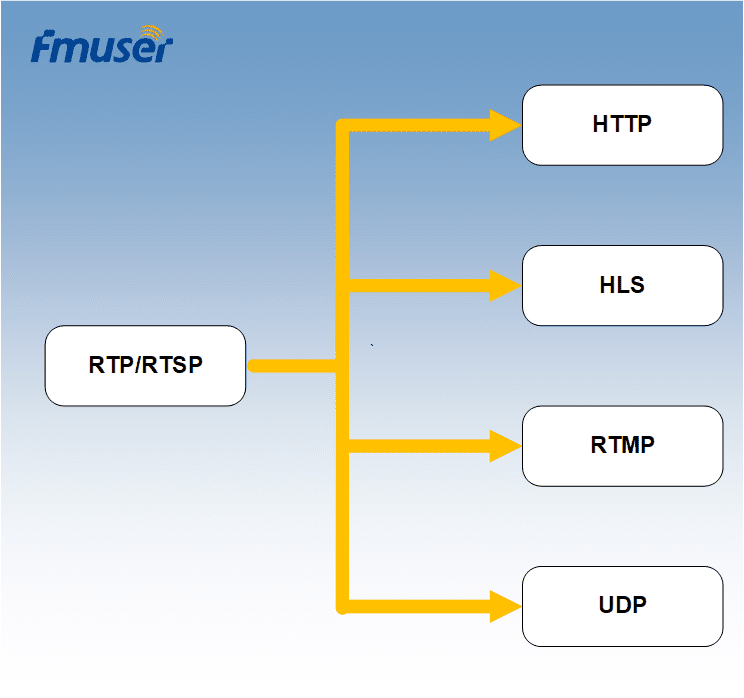

Controlled via web-based NMS management through DATA port.IP Protocol Conversion:

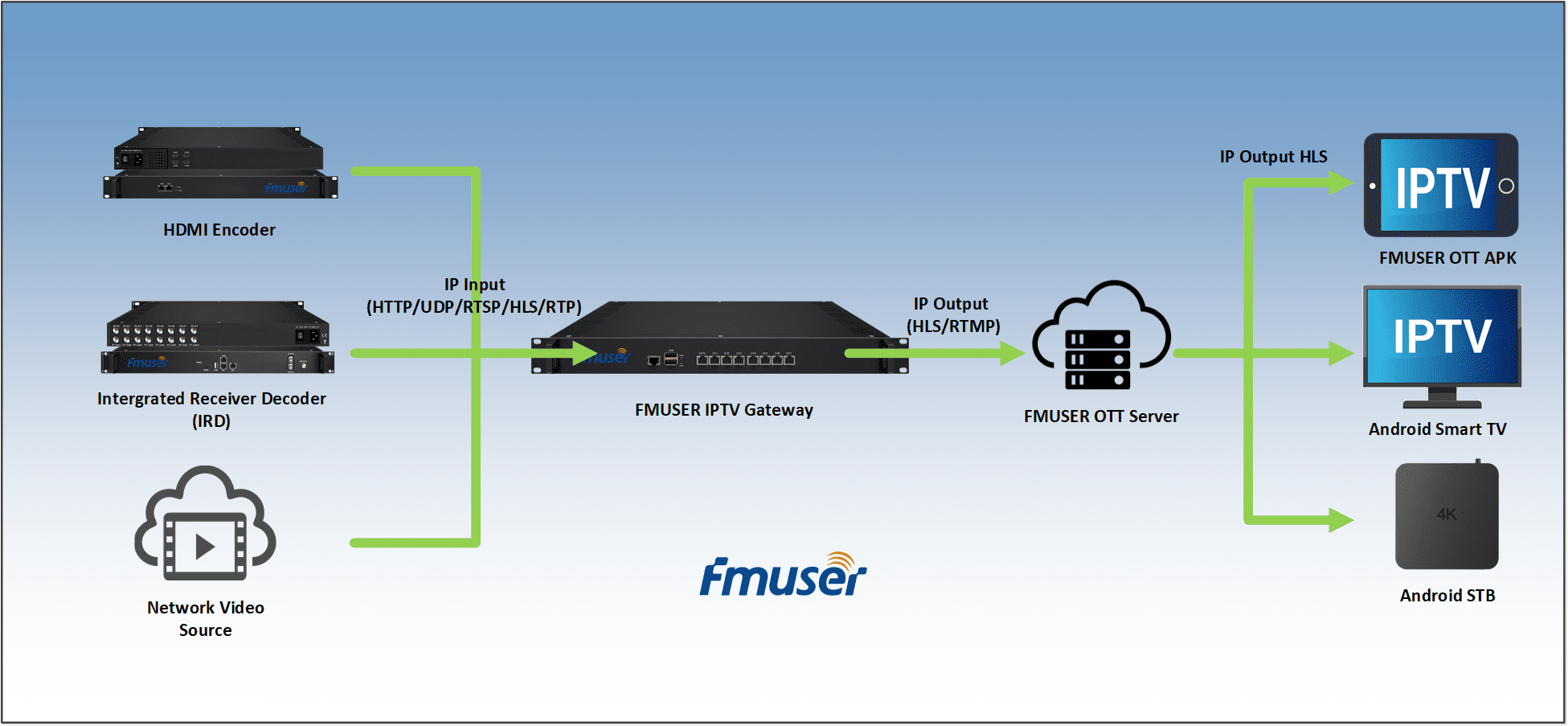

Principle Chart:
Specification:
